ZERO FIRMWARE UPDATE

Step-by-step guide for macOS

You do not have a Perfect Key or Seed yet

IMPORTANT: It is important to follow all the steps (especially step 5) on this page. The steps below are only for the users that haven't created a seed phrase on their ZERO yet. If you have a seed phrase, follow the step-by-step guide on this page.

To update your ZERO to v1.4.1, we will proceed in 3 main steps:

  1. Downloading the Firmware Updater installer.

  2. Installing and starting the Firmware Updater.

  3. Updating your ZERO by following the steps in the Updater tool.

IMPORTANT: Please ensure your ZERO is fully charged before proceeding with the firmware update. Wait until the battery indicator on your screen turns completely green to proceed.

Please, make sure you have installed the latest version of your LIQUID app to enjoy the newest available features.

1. Download the Firmware Updater Installer

Download the installer for Mac.

This tool will install the Firmware Updater on your computer.

Double-click on the downloaded .zip file.

It will unpack the NGRAVEFirmwareUpdaterInstaller. Double-click on NGRAVEFirmwareUpdaterInstaller

The following pop-up will appear:

Click on OK. This is a warning because Apple has not officially approved the software yet.

If the updater tool doesn't start after you press OK then go to System Preferences > Privacy & Security > scroll down to Security and click on Open Anyway.

2. Install and start the Firmware Updater

Step 1 - Install the Firmware Updater Tool by following the steps in the tool.

You need to first install the Firmware Updater Tool on your computer to then fetch and install the latest firmware update on your ZERO.

Follow the steps on the tool:

Step 2 - Once you installed the update tool. You can start the NGRAVE Firmware Updater.

Now the Firmware Updater tool is installed on your computer. It is time to start the Firmware Updater.

Go to Finder > Applications > NGRAVE then double-click on NGRAVE Firmware Updater.

Then you will need to double-click on NGRAVE_Firmware_Updater to actually launch the Updater.

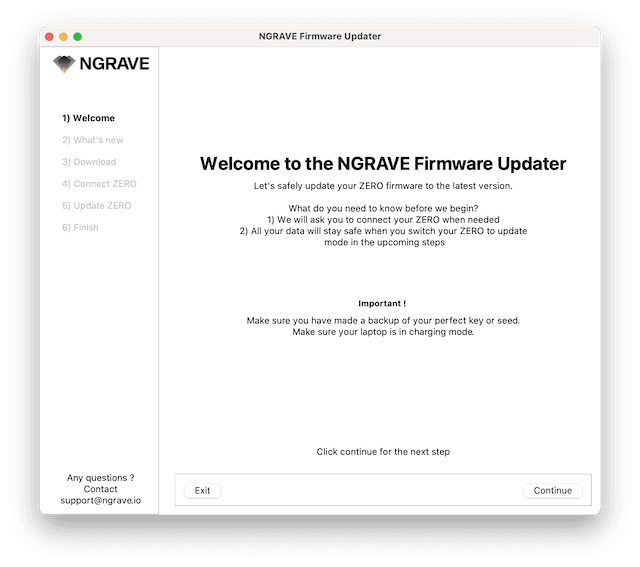

Step 3 - You should now see the following screen open on your desktop:

It can take a few seconds to launch.

3. Update your ZERO using our Firmware Updater

IMPORTANT: When you reach step 5 below. Don't follow the steps in the updater tool but follow the steps on this page.

Step 1 - Launch the NGRAVE Firmware Updater Tool

Carefully read the instructions on the screens.

NOTE: If your NGRAVE Firmware Updater is not open yet go to your Applications on your Mac and look for NGRAVE Firmware Updater:

Go to Finder > Applications > NGRAVE then double-click on NGRAVE Firmware Updater.

Then you will need to double-click on NGRAVE_Update_Tool to actually launch the Updater.

Step 2 - Follow the steps on the Firmware Updater tool

You will see the Release Notes and you will be asked to download the new software.

Click on Download.

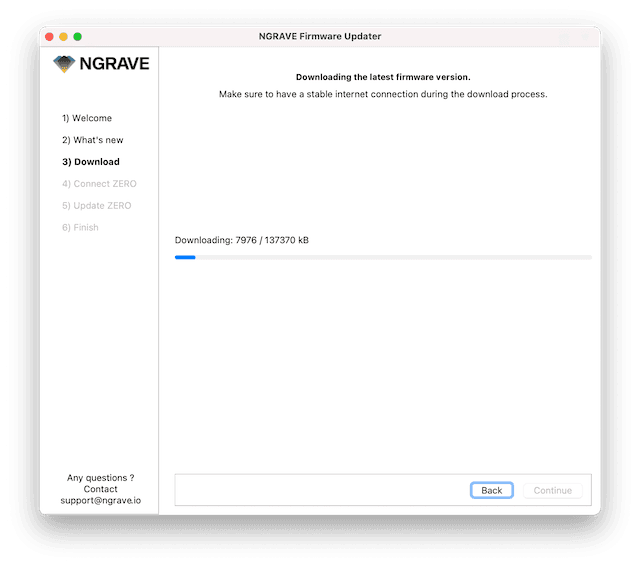

Step 3 - Wait for the download of the firmware

You are now downloading on your computer the latest version of the ZERO firmware that you will soon be installing on your cold wallet.

After the tool has downloaded the firmware update, it will cryptographically check the integrity of the file. This way it is impossible to install an update that is not signed by NGRAVE.

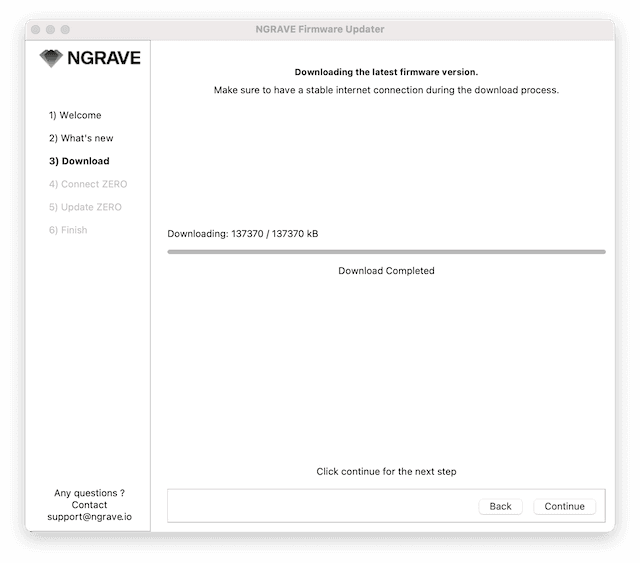

Step 4 - When the download is complete, click on Continue

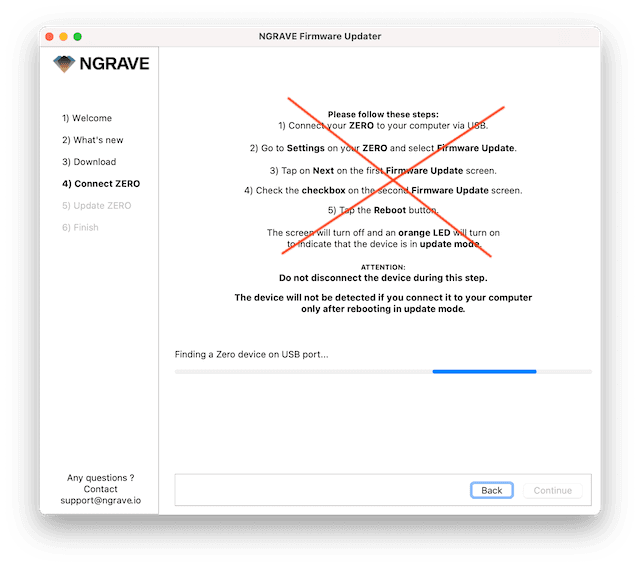

IMPORTANT: Step 5 - Don't follow the steps on the screen but follow the steps below on this page.

Step 5a - Connect your ZERO to your computer via USB

If your computer does not have a USB port, please use an adaptor.

Step 5b - Put the ZERO in update mode

To install a firmware update, your ZERO needs to be in update mode. Customers without a seed phrase need to activate update mode by using this power button combination:

1) Double-tap & hold the power button for 5 seconds on the second tap until the LED starts blinking.

2) Confirm by tapping & holding the power button for 2 seconds until the LED stays on.

3) The updater tool will now detect your ZERO.

IMPORTANT: Do not disconnect your ZERO while it is in Update Mode.

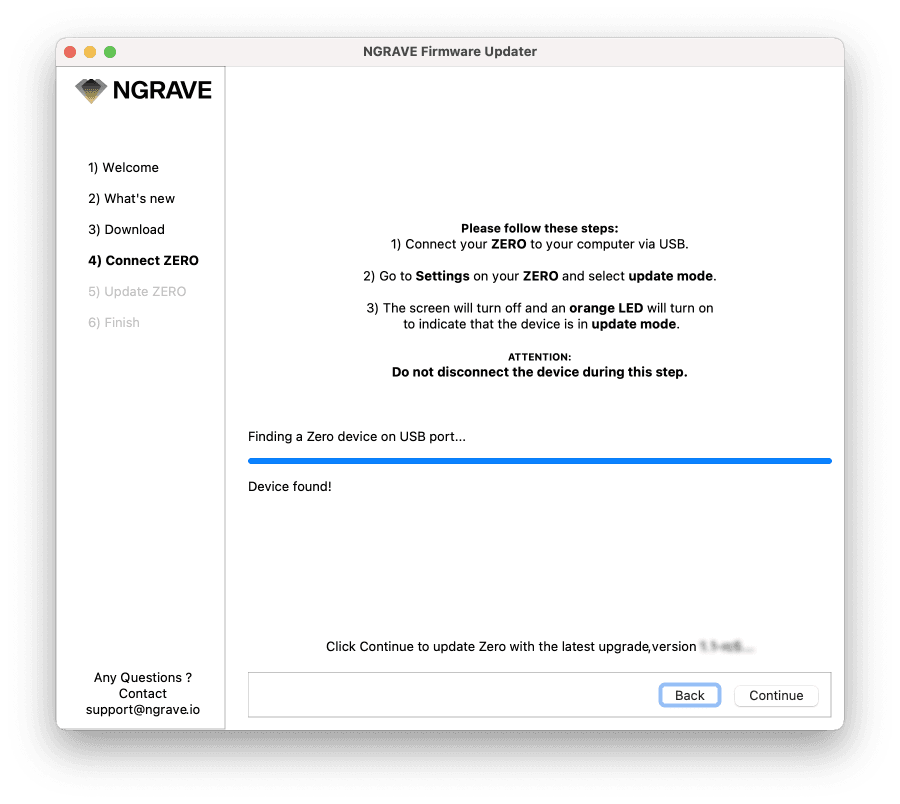

Step 6 - Once the device is found, press on Continue

If the updater tool does not find the ZERO, these are some checks to perform:

  1. Check that your ZERO is correctly connected to your computer.

  2. Make sure that you have completed Step 5c correctly and you have pressed Reboot on your ZERO.

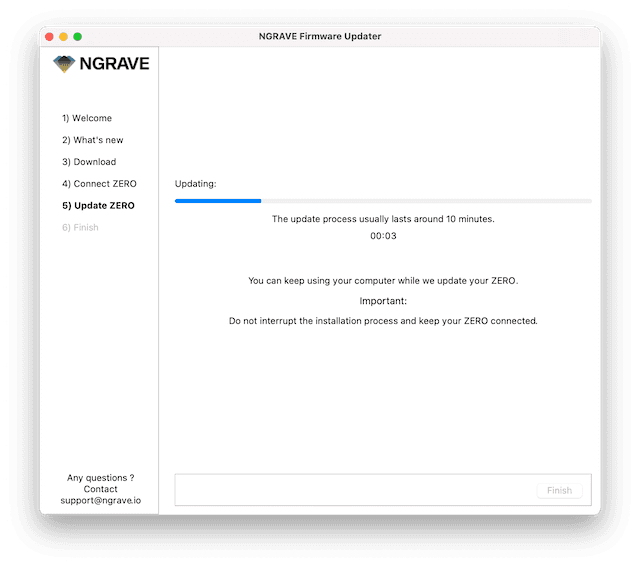

Step 7 - Wait for your ZERO to update

Do not disconnect your ZERO from the computer.

The update can take up to 10 min.

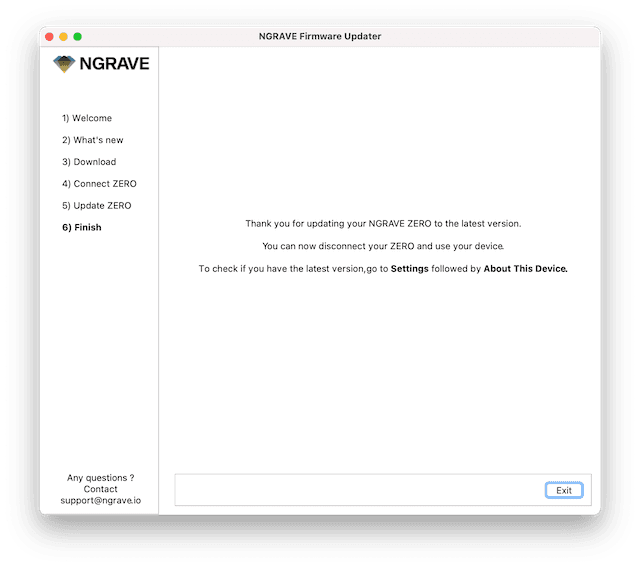

Step 8 - Once the update is done, click on Finish

Step 9 - You are officially done with your ZERO firmware update

You can now safely disconnect your ZERO from your computer. Click on Exit to close the tool.

Step 10 - Create your Perfect Key and check your firmware version in ZERO

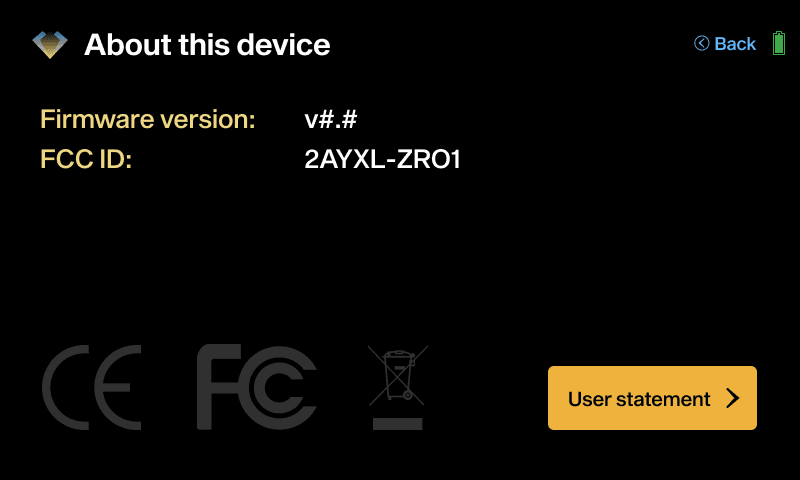

Go to Settings on the top right part of the screen and then go to About this device.

You will now be able to see that your firmware version has been updated to v1.4.1.

Congratulations, you updated your ZERO's firmware!
